Keywords: oil bath furnace, oil bath, high-precision oil bath furnace, oil bath pot, heating, stirring, tank liner, 300 ℃ oil bath furnace,

　　High precision oil bath furnace, high-temperature constant temperature oil bath can also be called oil bath tempering furnace, oil bath heating furnace, oil bath annealing furnace, external heating oil bath furnace, crucible oil bath furnace, constant temperature oil bath pot, 300 ℃ oil bath furnace. It is mainly used for heating high hardness parts such as cutting tools, measuring tools, molds, nitriding, carburizing, etc. made of carbon tool steel and low-alloy tool steel.

High precision oil bath furnace, high-temperature constant temperature oil bath

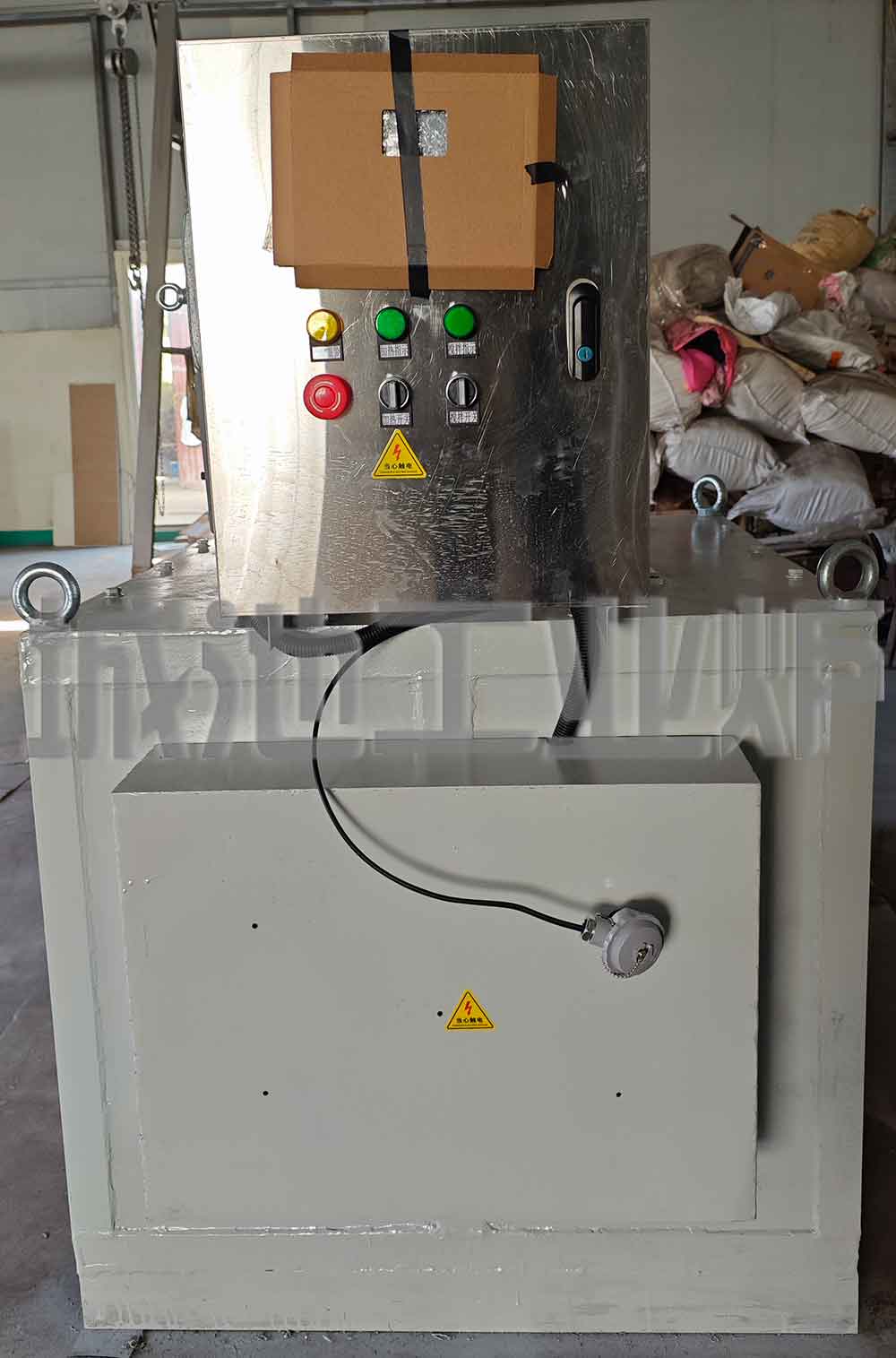

　　This high-precision oil bath furnace and high-temperature constant temperature oil bath are equipped with heating system, stirring system, safety system, automatic control system, and other components.

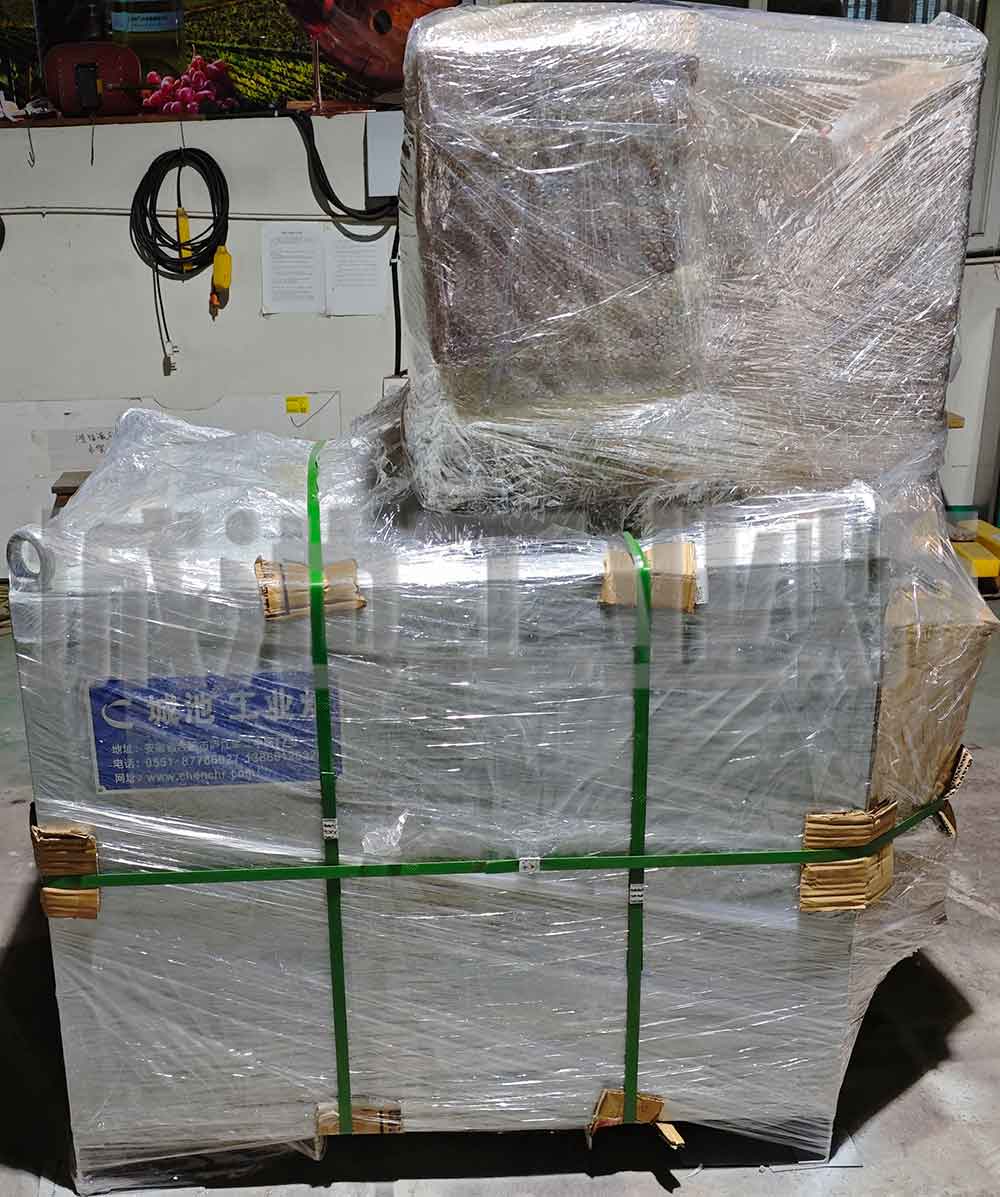

High precision oil bath furnace, high-temperature constant temperature oil bath packaged and shipped

　　The furnace body is welded and processed from thickened steel plates and section steel, using section steel as the frame. The exterior has a furnace shell welded with steel plates, and the interior is an oil tank liner bent and welded from thickened stainless steel. The middle is filled with refractory fibers to form a thermal insulation layer. The furnace cover can adopt a movable structure. The heating module is composed of stainless steel heating tubes. One side of the oil tank is equipped with an insulated stirring system, which ensures uniform temperature and flow of the medium in the effective quenching zone. The workpiece has a wide heating surface and uniform tempering.

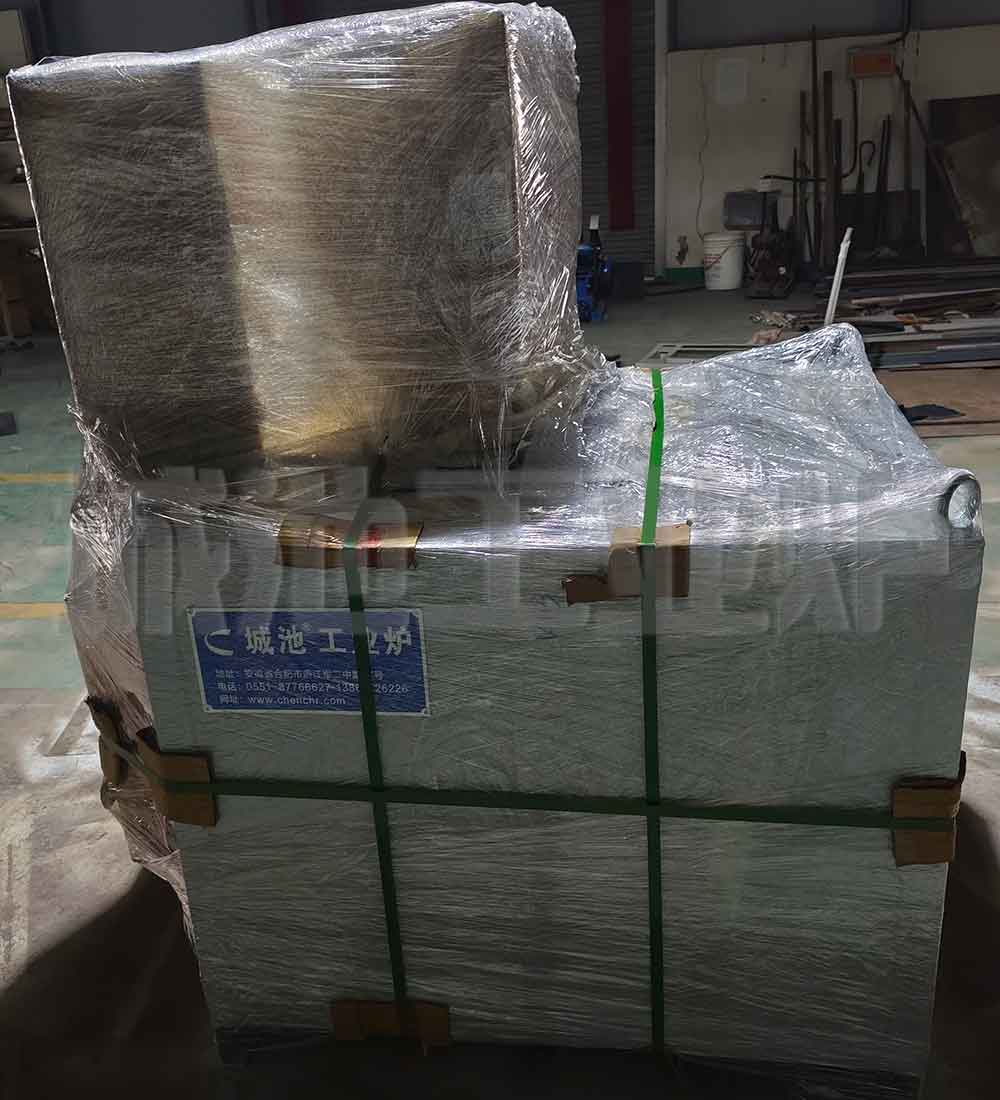

High precision oil bath furnace, high-temperature constant temperature oil bath packaged and shipped

　　The Chengchi brand GYY high-precision oil bath furnace and high-temperature constant temperature oil bath heating control system adopt microcomputer PID control SRR solid state relay. Solid state relay is a switch element without mechanical contacts, which has the advantages of flexible control, high reliability, long service life, no electric sparks generated during on and off time, no noise, fast switching speed, high working frequency, and strong anti-interference ability. In addition, the oil bath tempering furnace is equipped with various sensors to better utilize the potential of the equipment. Various adaptive functions can also be customized according to user production needs to meet production demands.

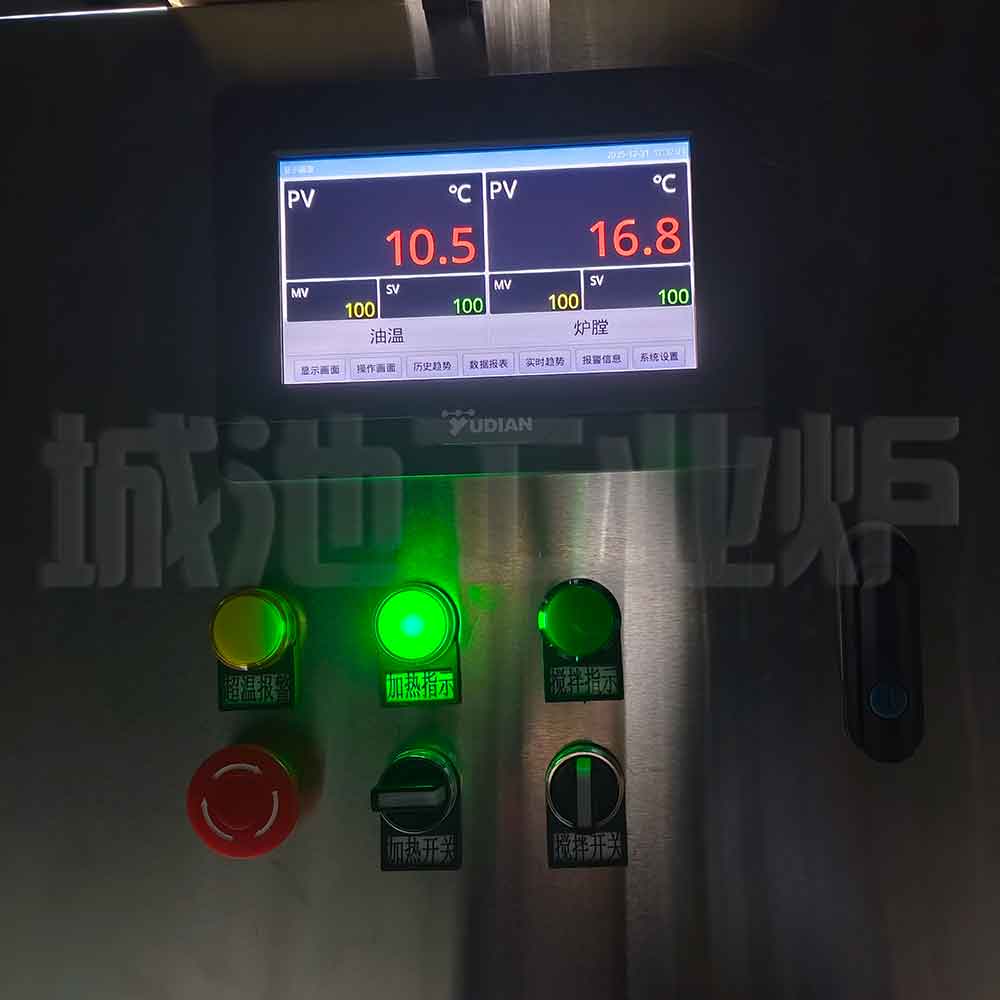

High precision oil bath furnace, high-temperature constant temperature oil bath for factory testing

More High precision oil bath furnace, high-temperature constant temperature oil bath: en.chengchi.net/view-271.html
