ORB oil quenching tank, quenching oil tank, oil quenching tank

　　Chengchi brand OAB oil quenching tank, quenching oil tank, oil quenching tank is a quenching tank that uses quenching oil as a medium and is designed specifically for oil quenching media. The speed at which oil conducts heat from hot parts is slower and more uniform than water. The relatively gentle cooling rate reduces significant thermal shock and internal stress, which can cause parts to warp, deform, or crack. This makes oil an ideal choice for high hardenability alloy steels or parts with complex geometries, sharp corners, or significant cross-sectional variations.

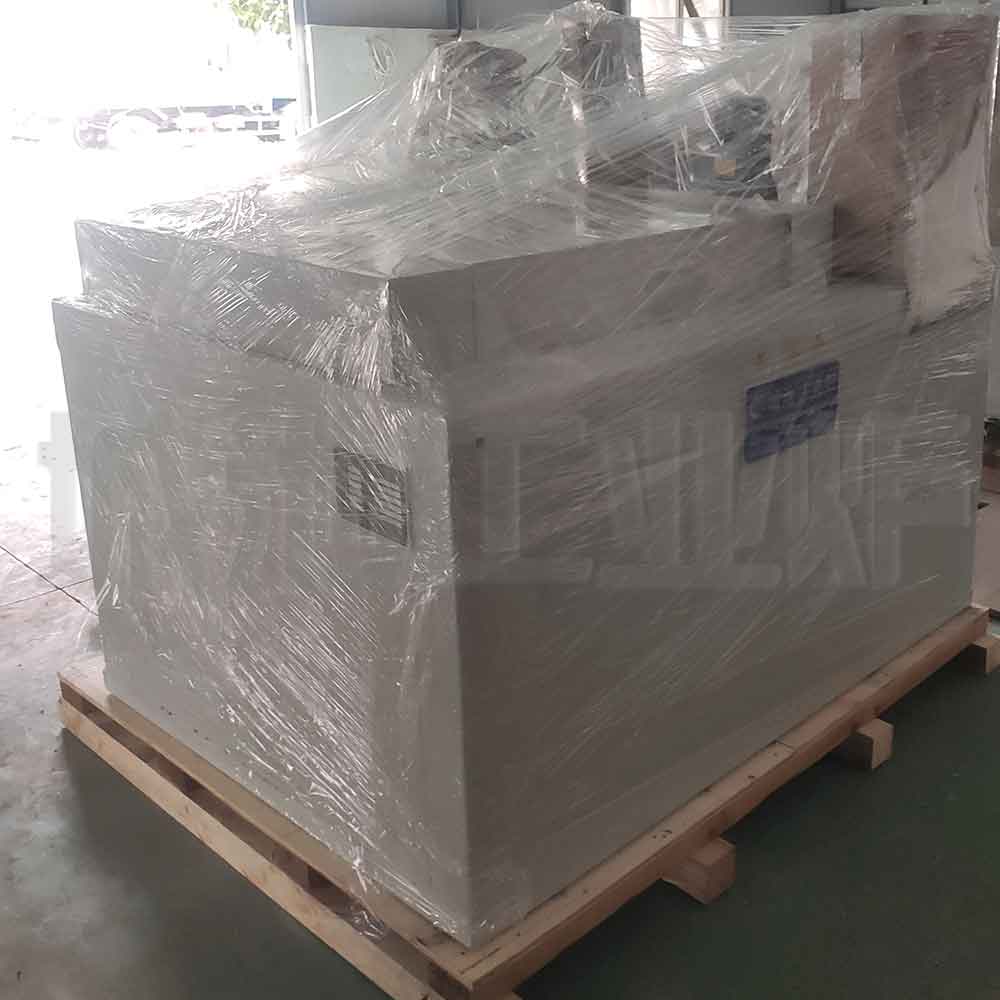

ORB oil quenching tank, quenching oil tank, oil quenching tank packaged and ready for shipment

　　The ORB oil quenching tank has an inner wall made of 4mm 0Cr18Ni9 stainless steel plate welded to a steel frame; Fill the middle with aluminum silicate insulation cotton for thermal insulation, suitable for the process requirements of high temperature quenching; The external panel is composed of bent panels. Oil quenching tank, the quenching oil tank function can flexibly choose heating, automatic temperature control, stirring, circulation, cooling, lifting mechanism, automatic water inlet, filtration system, fire extinguishing system, intelligent control and other functions according to user needs.

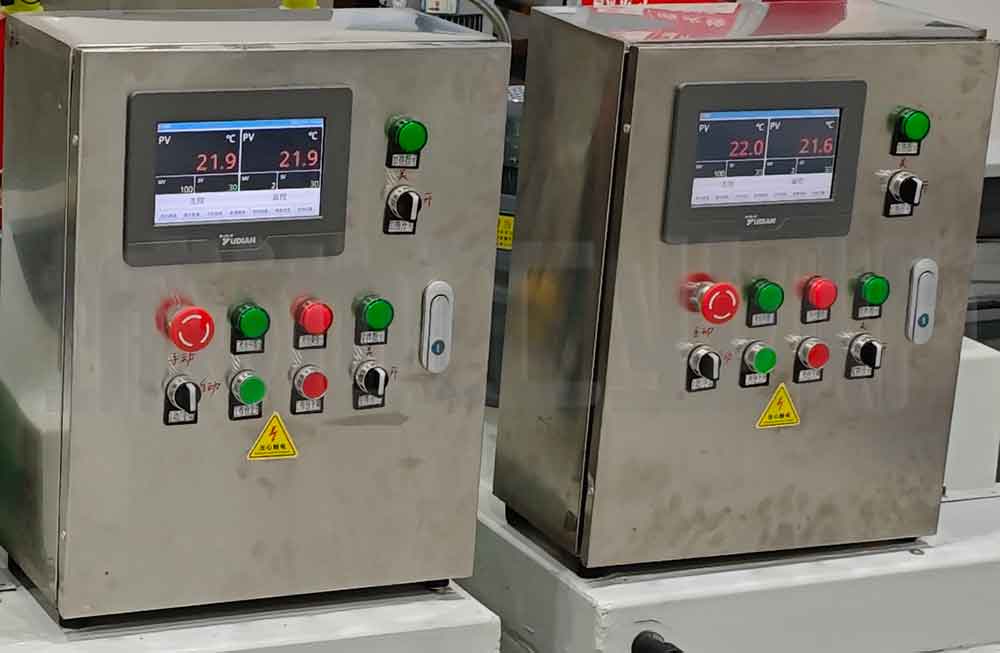

ORB oil quenching tank, quenching oil tank, oil quenching tank control system

　　This ORB oil quenching tank, quenching oil tank, and oil quenching tank stirring are set on one side of the tank body in the length direction, and are installed in a top plug manner. Using propellers as medium thrusters to achieve high flow motion of the medium. The stirring device should ensure that the high-temperature medium on the liquid surface is effectively pushed to the bottom of the quenching tank, so that the oil quenching medium can effectively participate in heat exchange, and ensure that the high-temperature oil on the liquid surface can be quickly brought to the bottom of the quenching oil tank after the quenched parts are immersed. This not only avoids the occurrence of fires but also ensures that the temperature of the medium in various parts of the quenching oil tank is uniform.

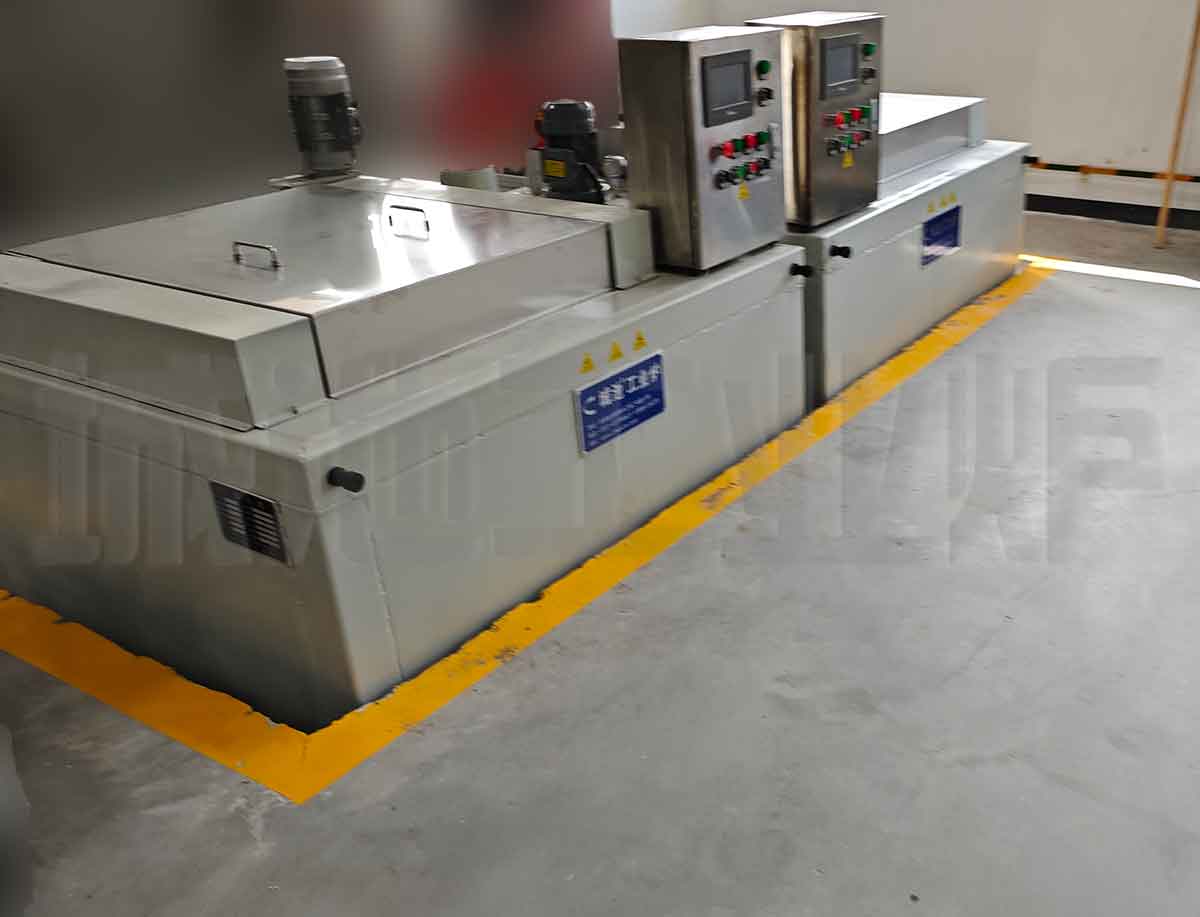

ORB oil quenching tank, quenching oil tank, oil quenching tank customer site

　　This ORB oil quenching tank is equipped with the most space saving compact dedicated electric lifting mechanism to facilitate the placement of the quenching oil tank in the pit. The lifting mechanism consists of a motor, a reduction transmission mechanism, a running track, a heavy-duty lifting platform, etc. And move the workbench up and down along the track for lifting and lowering the workbench. The fixed material frame on the workbench is composed of steel and wire mesh or orifice plate, which can hold various workpieces. After quenching, the material frame should be able to ensure that the parts are completely detached from the liquid surface when lifted; The material frame and bracket are fixed by bolts or slots and can be disassembled; The material frame bracket is detachable, making it easy to clean the dirt at the bottom of the oil tank.

ORB oil quenching tank, quenching oil tank+quenching water tank packed in wooden boxes ready for shipment

　　ORB oil quenching tank, quenching oil tank+quenching water tank packed in wooden boxes ready for shipmentORB oil quenching tank, quenching oil tank+quenching water tank delivery site

ORB oil quenching tank, quenching oil tank+quenching water tank delivery site
