　　Chengchi brand HTQT bainite, high-temperature quenching oil tanks for isothermal and graded quenching can be called isothermal quenching tanks, graded quenching tanks, bainite quenching tanks, etc. It is a high-temperature quenching oil tank designed specifically for quenching using quenching oil as the cooling medium during isothermal quenching and graded quenching processes. Divided into 200 ℃ quenching oil tank and 300 ℃ quenching oil tank according to the operating temperature.

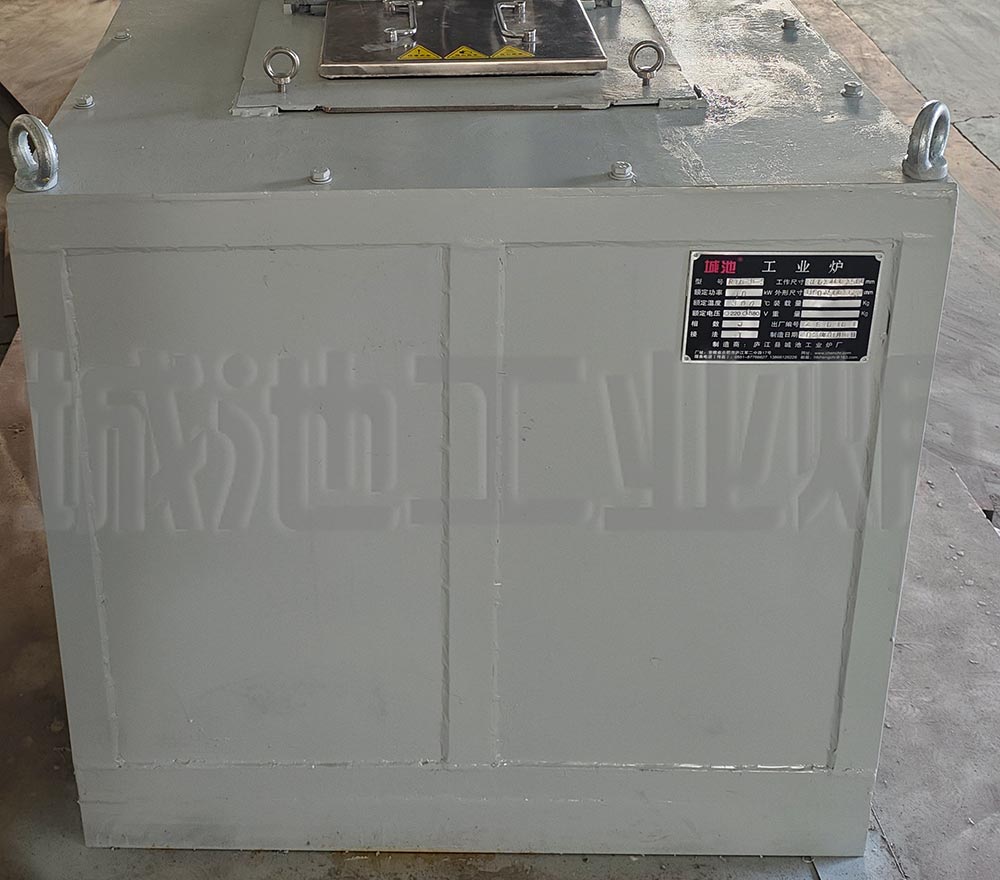

High temperature quenching oil tank for isothermal and graded quenching

　　The bainite isothermal and graded quenching high-temperature quenching oil tank furnace body is welded and processed from thickened steel plates and section steel, using section steel as the frame, with a furnace shell welded with steel plates on the outside, and a square furnace made of refractory bricks in the middle. Fill the insulation fiber cotton insulation layer between the furnace and the furnace shell to isolate heat propagation. High temperature heating elements are installed inside the furnace, and the heat is indirectly transferred to the internal oil tank through non-contact heating, thereby avoiding direct heating and causing quenching oil cracking. The interior is an oil tank liner made of thickened stainless steel bent and welded. The furnace cover can adopt a movable structure. A heat-insulating stirring system is installed on one side of the oil tank. The quenching oil flows along the guide mechanism to the working area and then returns to the inlet of the mixer. In this way, the medium temperature in the effective quenching area is uniform and in a flowing state, and the workpiece has a wide heating surface and good temperature uniformity. When the temperature of the quenching oil exceeds the set temperature, the cooling system is activated, and the quenching oil is pumped out to the heat exchanger through the circulation pump. After cooling, it flows back to the quenching oil tank, thereby reducing the temperature to the bottom.

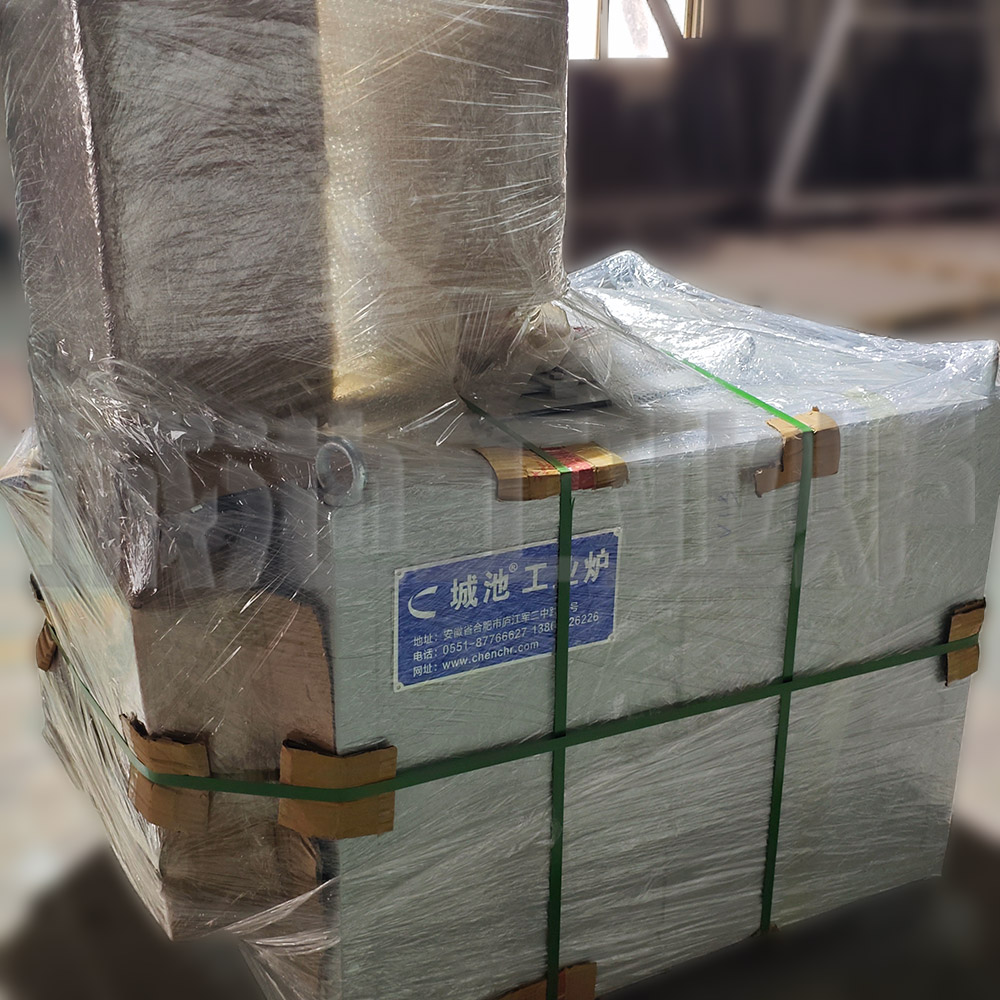

High temperature quenching oil tank packaging for isothermal and graded quenching to be shipped

　　The high-temperature quenching oil tank for bainite isothermal and graded quenching is equipped with heating system, circulating cooling system, stirring system, safety system, automatic control system, etc. Various functions are customized and processed according to user needs.

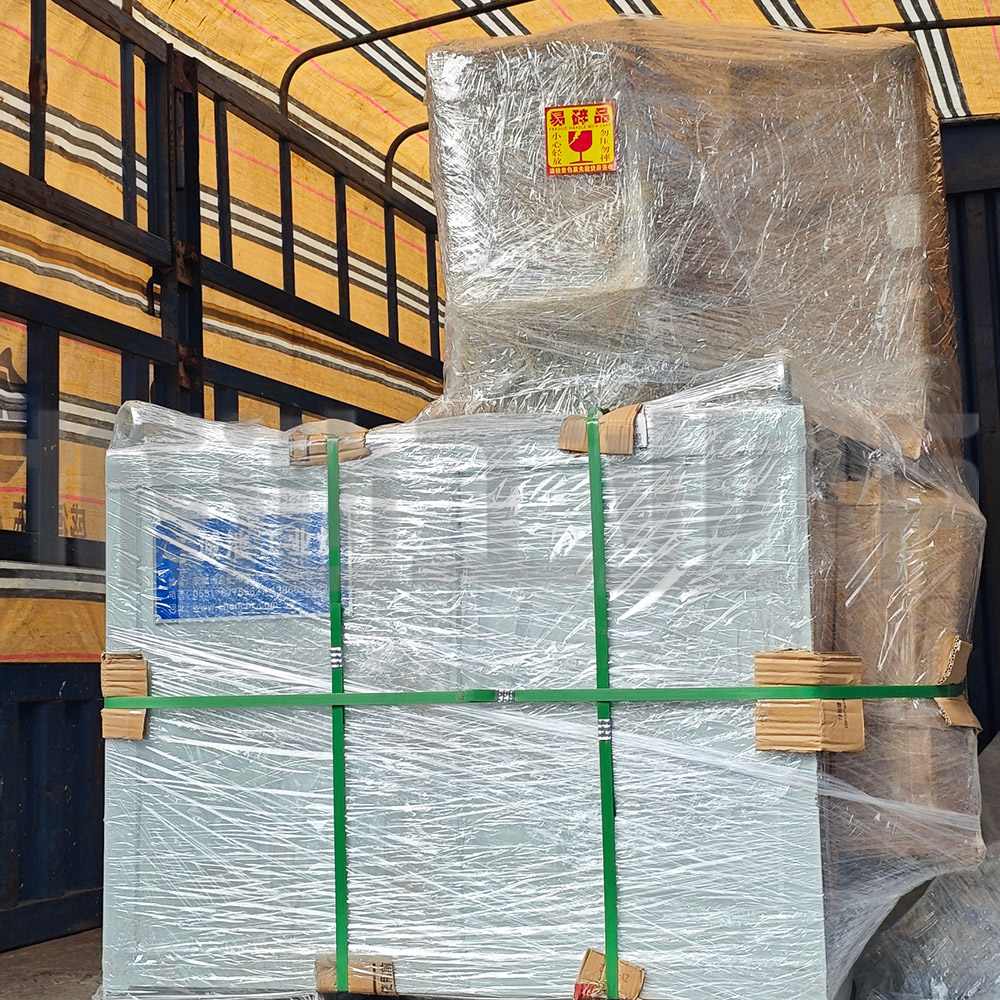

Delivery site of high-temperature quenching oil tank for isothermal and graded quenching

More High temperature quenching oil tank for isothermal and graded quenching,graded quenching tank,bainite quenching tank: en.chengchi.net/view-273.html
