Quench tank agitator

    The quenching tank agitator (quenching oil tank agitator, heat treatment quenching tank agitator, high temperature quenching tank agitator) is a special type agitator designed for the heat treatment quenching process of Chengchi industrial furnace, which can be used for circular quenching tank, square quenching tank, and concrete quenching tank. It is directly installed on the upper edge of the open quenching tank, providing a low-cost and efficient quenching stirring solution for the old quenching tank.

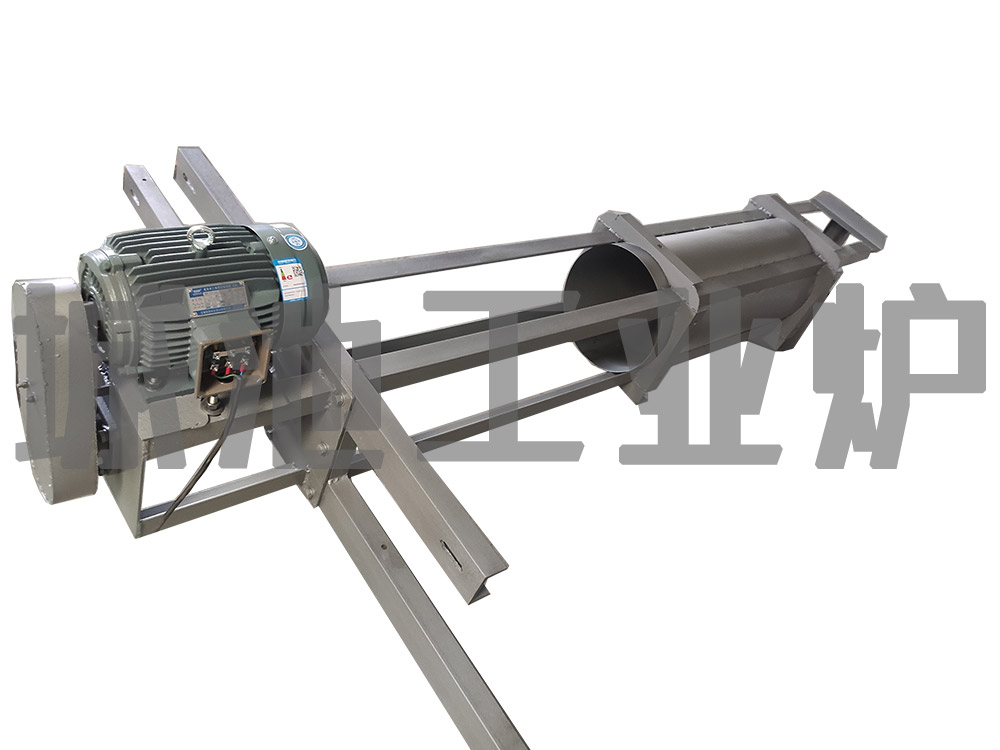

Quenching tank agitator, quenching oil tank agitator, heat treatment quenching tank agitator, high temperature quenching tank agitator

    The working principle of quenching tank agitator, quenching oil tank agitator, heat treatment quenching tank agitator and high temperature quenching tank agitator is that the motor providing power is driven to the mixing shaft through a belt to drive the propeller type mixing impeller under the quenching liquid to rotate. Due to the restricted diversion effect of the guide cylinder, the quenching liquid (quenching oil) flows from top to bottom along the direction of the guide cylinder, turns forward through the quenching working area, and then flows back to the guide cylinder, so that the liquid in the whole quenching working area flows continuously. On the one hand, it can ensure that the temperature in the quenching working area is uniform, and when the quenching workpiece enters the quenching working area, it can quickly take away the heat of the quenching workpiece, so as to achieve the goal of rapid and uniform quenching.

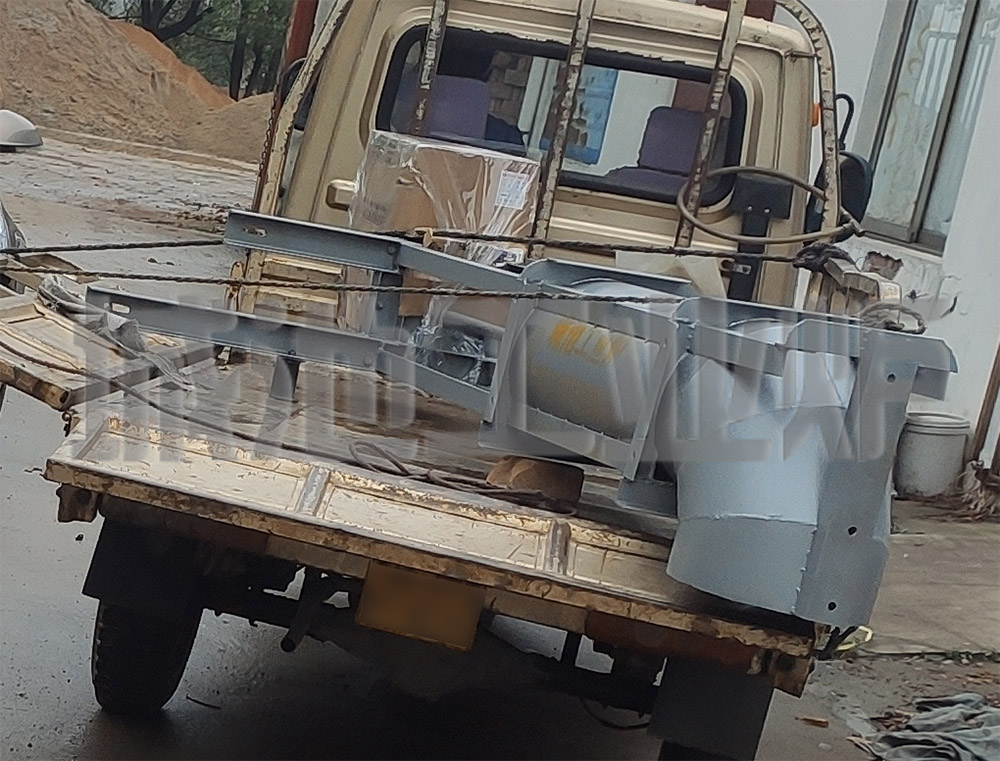

Quenching tank agitator, quenching oil tank agitator, heat treatment quenching tank agitator, high temperature quenching tank agitator delivery

    Quenching tank agitator, quenching oil tank agitator, heat treatment quenching tank agitator and high temperature quenching tank agitator are split structures, which are destined to be particularly suitable for quenching oil tanks requiring high temperature quenching. The service life of the motor will not be shortened due to high temperature quenching oil.

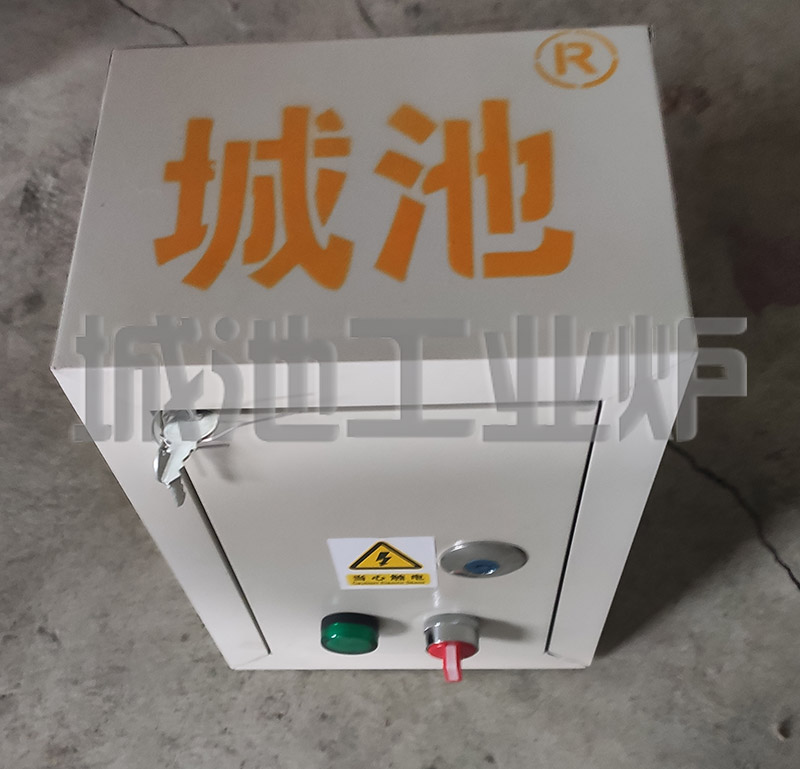

Quenching tank agitator, quenching oil tank agitator, heat treatment quenching tank agitator, high temperature quenching tank agitator control cabinet

    The installation mode of Chengchi brand quenching tank agitator is top-mounted, which is very convenient for later maintenance and repair. Especially for large quenching tanks, it is not necessary to drain the quenching liquid. It can be lifted out of the slot as a whole or some parts can be disassembled and replaced due to failure. Maintenance is simple, convenient and low cost.

More Quench tank agitator: en.chengchi.net/view-223.html
